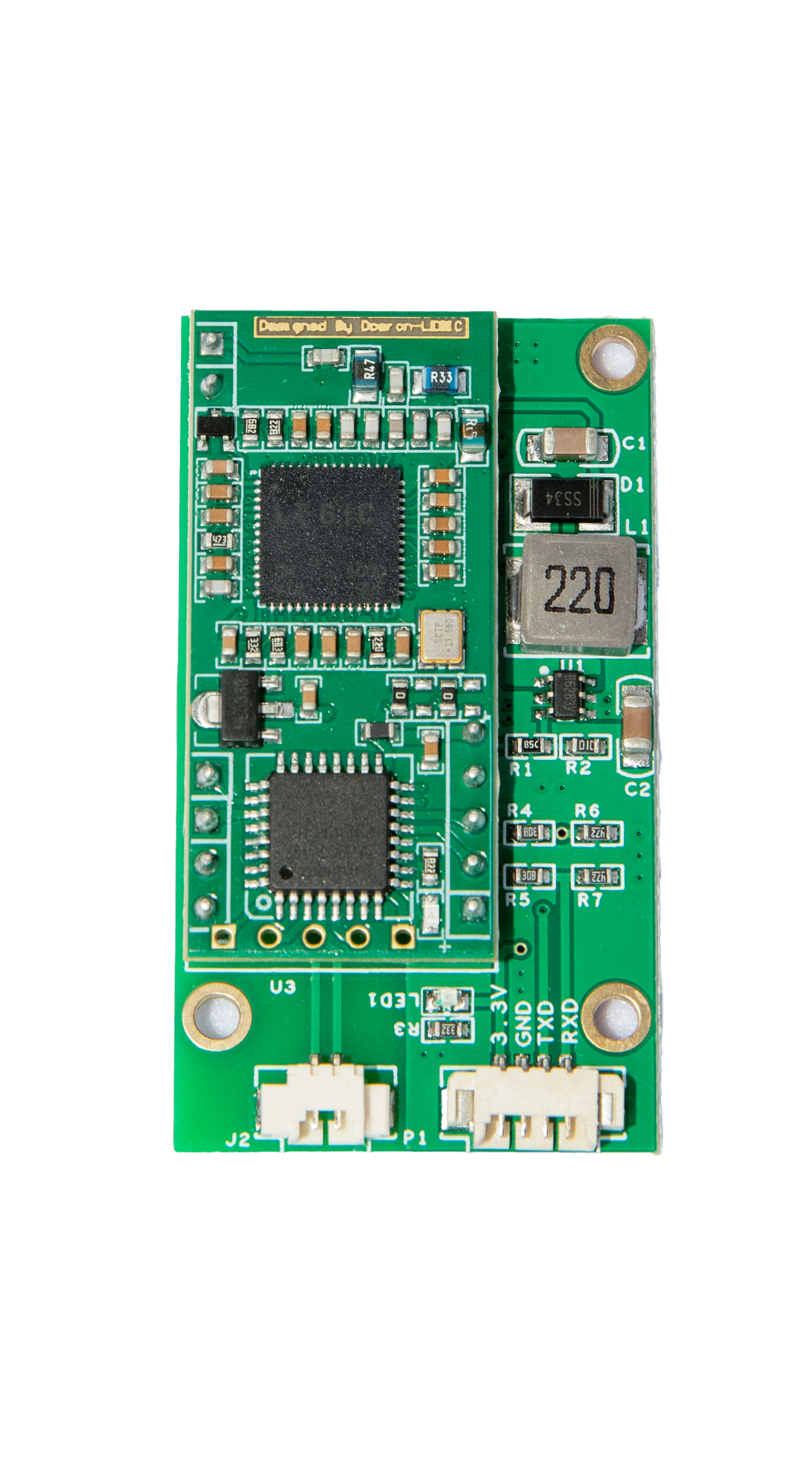

6109 LEGIC®-Based RFID Module

Name: 6109 LEGIC®-Based RFID Module
Brand: DAOSTONE

The Daostone 6109 is an advanced embedded RFID module powered by high-performance LEGIC® chips. It offers exceptional cost-effectiveness and robust anti-interference capabilities while supporting a diverse range of LEGIC and third-party transponder types. Designed with a built-in high-performance microprocessor, it provides a secure and flexible solution for access control, attendance management, building automation, and elevator control.

GET A QUOTE

Description

1.1 Basic Parameters

Operating Frequency: 13.56MHz
Compliant Protocols: ISO14443A, ISO14443B, ISO15693
Reading Distance: ≤5cm
Communication Method: TTL
Operating Temperature Range: -20°C to 70°C
Operating Humidity Range: 10% to 80% RH
Module Interface Wiring: 3.3V, GND, TXD, RXD (See module printed circuit for details)

Physical Dimensions

Antenna Coil: Length 42mm, Width 25.4mm, Height 5.5mm
RFID Module: Length 50mm, Width 28mm, Height 8mm

1.2 Data Format

The RFID module directly converts the 4-byte hexadecimal information of the specified sector of the IC card into a 10-digit decimal number, padded with zeros, and outputs it via the serial TTL port.
