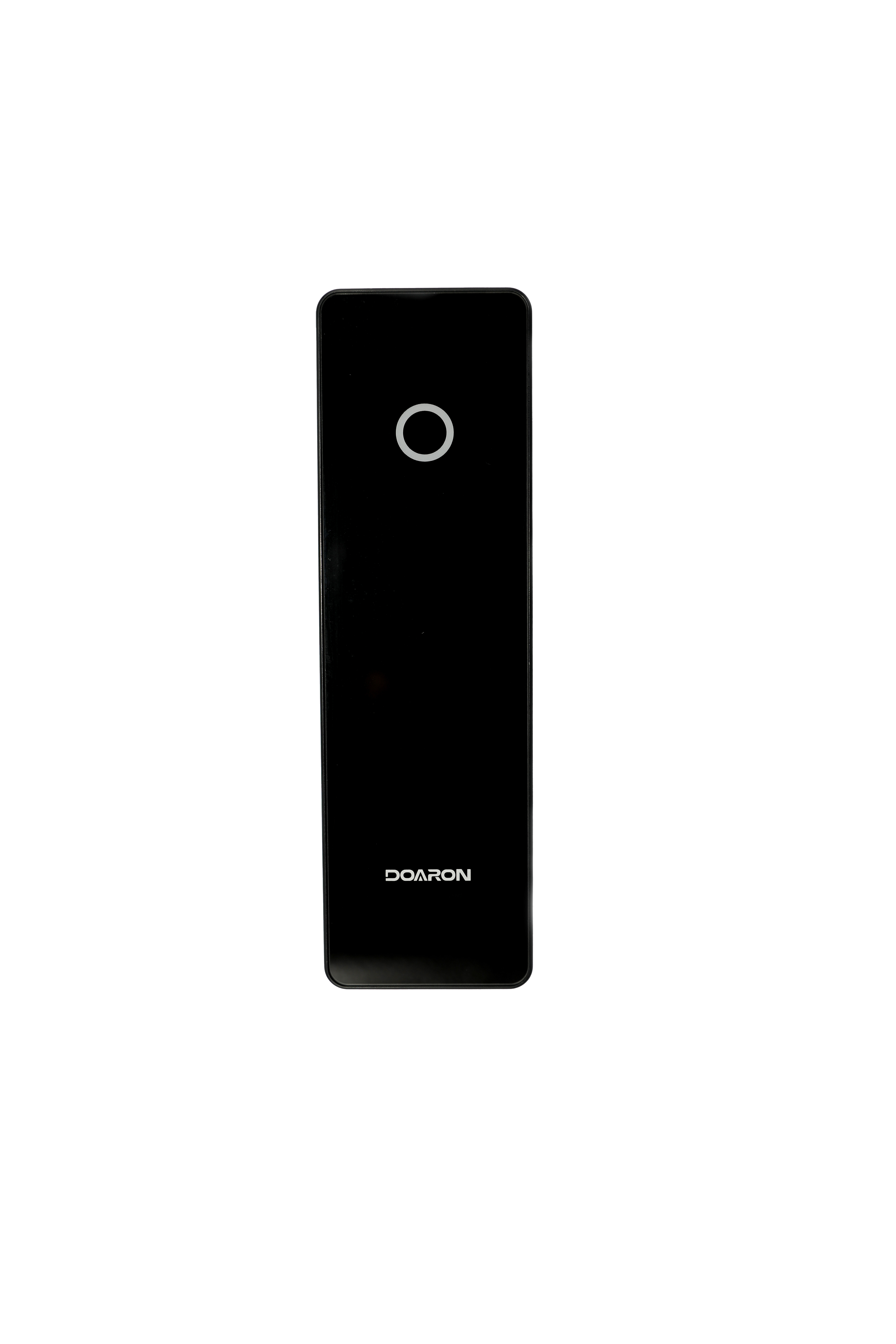

6101N-Slim-Bezel Reader

Name: 6101N-Slim-Bezel Reader
Brand: DAOSTONE

The intelligent access control and attendance reader offers leading flexibility, a built-in high-end microprocessor, high security and reliability, and exceptional ease of use. Configurable with IC cards, access controllers, biometric technology, and gate management, it features comprehensive management and control tools that can be customized to meet the management needs of diverse businesses.

GET A QUOTE

Description

Physical Dimensions

Length 148mm Width 45mm Height 20mm

Basic Parameters

Operating Frequency: 13.56MHz
Compliant Protocols: ISO 14443A, ISO 14443B, ISO 15693
Reading Distance: ≤5cm
Communication Method: Wiegand 34/RS-485 Interface
Baud Rate: 9600
Operating Voltage: DC 12V
Operating Temperature Range: -20°C to 70°C
Operating Humidity Range: 10% to 80% RH

Data Format

The reader directly converts the 4-byte hexadecimal information in the specified sector of the IC card into a 10-digit decimal number and outputs it via the Wiegand 34/RS-485 interface.
