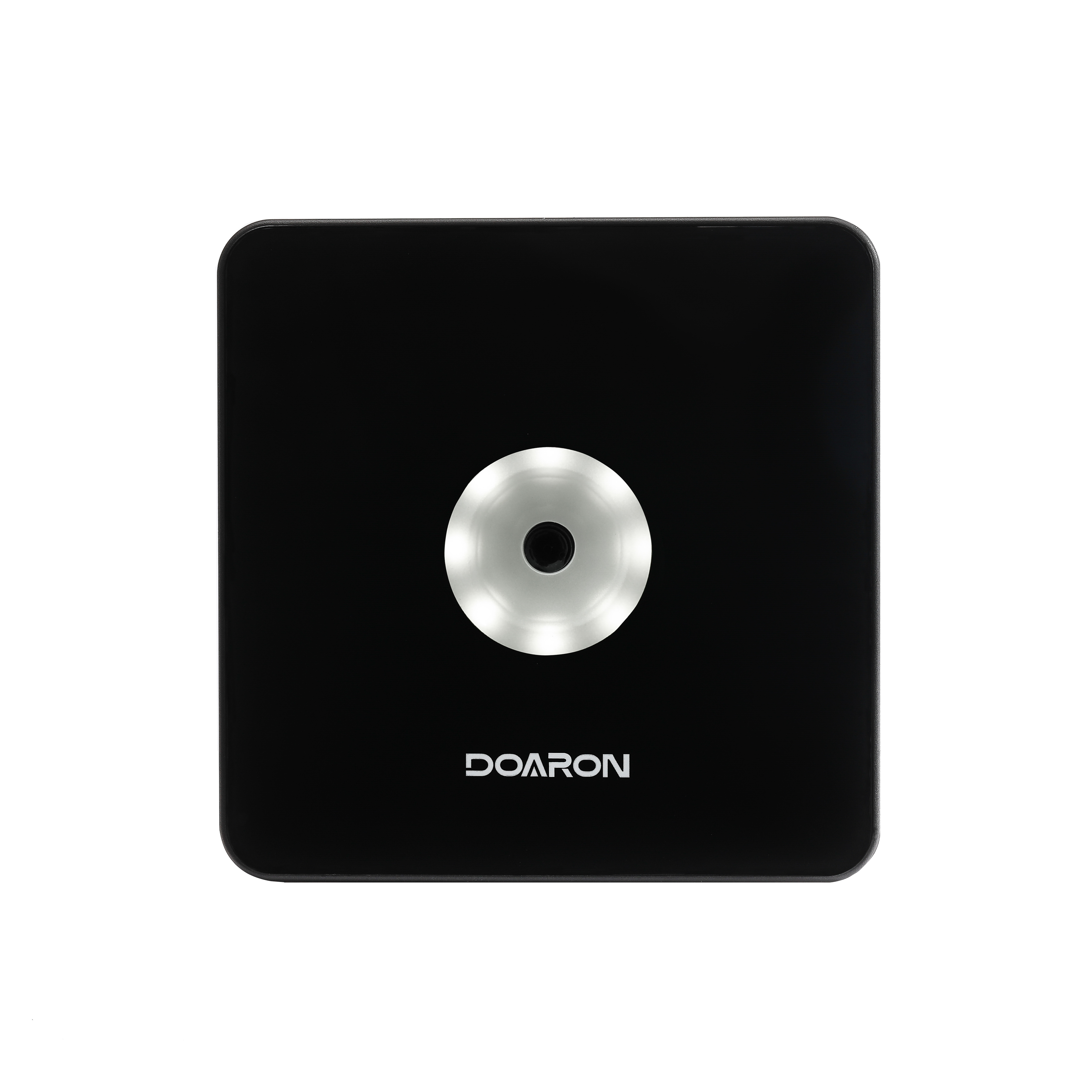

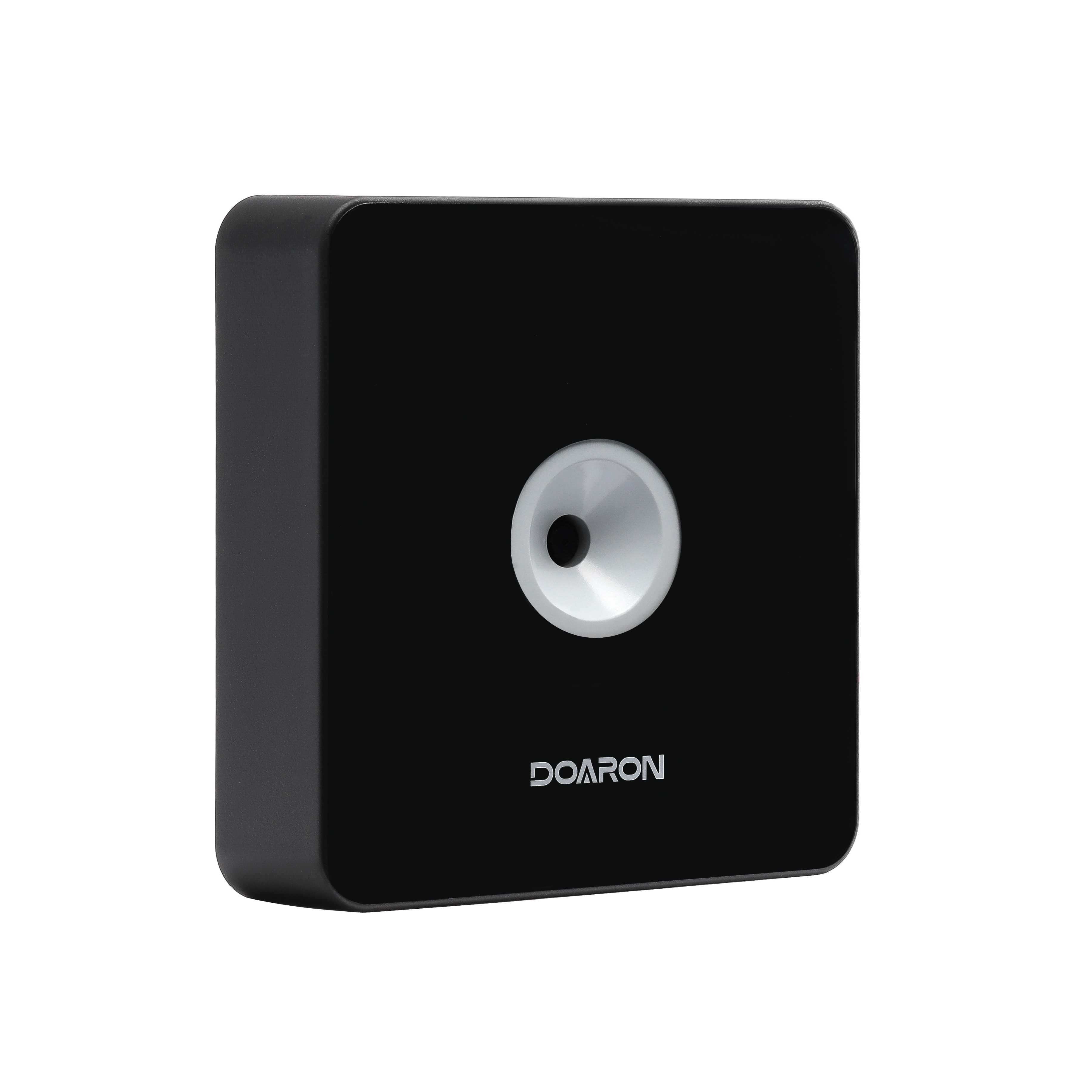

6201-QR Code Reader

The Daostone 62 Series QR code reader is designed for smartphone-based identity verification, offering fast scanning, high accuracy, and compatibility with most major QR code systems. Its time-sensitive QR code unlocking method is simple to use, making it the perfect tool for access control, speed gates, visitor QR code scanning, payment systems, and one-time access control.
  • 6201-QR Code Reader
  • 6201-QR Code Reader

Description

Physical Dimensions
Length 90mm, Width 90mm, Height 23mm
Basic Parameters
  • Card Reading Frequency: 13.56MHz
  • Compliant Protocols: ISO14443A ISO15693
  • Reading Distance: ≤5cm
  • QR Code Reading Distance: 3.5-18.5cm
  • Communication Interface: Standard 485, Standard 232, Wiegand 34
  • Baud Rate: 9600
  • Operating Voltage: DC 12V
  • Operating Current: < 0.5A
  • Operating Temperature Range: -20°C to 70°C
  • Operating Humidity Range: 0% to 80% (non-condensing)
Data Format
The QR code reader outputs data via the 485/232 interface, terminated by carriage return and line feed.
